Smoke stove

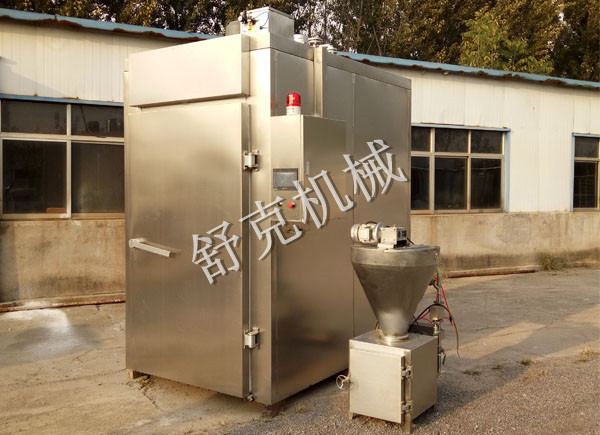

100 Automatic Smokehouse

Tel: 13406654188

The smoking oven is an indispensable equipment in the process of curing meat products,with cooking, drying, baking, smoking, ventilation, cleaning and other functions.

Applications:

All kinds of sausage, ham, pig, sheep, beef, poultry and aquatic products processing.

Functional configuration:

1. The fully automatic fuming furnace is controlled by PLC and human-machine interface computer system, which can display technological parameters such as temperature and time on one screen at the same time. Parameters can be adjusted at any time according to technological requirements during the production process, and the running state of the equipment can be monitored in real time.

2. Different formulas can be stored, single process operation can be carried out, and single process can be arbitrarily composed into formula production.

3. It has passwords for managers and operators, and records of production and failure.Can choose to connect module, realize remote monitoring function, can print formula, temperature curve.

4. The unique air circulation system can effectively ensure the consistency of temperature and humidity in the processing process, and the color of the product is even;Fast or slow cycle can be selected according to the process to achieve the best cycle smoke effect.

5, smoke system using external wood particles, wood chips smoke;The working condition of the smoke generator is regulated by the control system.

6. External steam heating or electric heating is adopted.

7, the use of high-quality stainless steel material, solid internal and external layer full welding structure, high quality and reliable silicone bar door seal structure;The insulation layer is made of imported polyurethane insulation material, which is resistant to high temperature and can be shaped once.

8. Modular box structure is adopted with flexible arrangement;Can provide single or double row layout, can be single direction in and out of the cart, can also be made into a passageway before and after the door, and equipped with green and ripe area interlock device.

9, spray function, achieve the product in the baking process without peeling, cooling fast.

10. Optional water circulation cleaning device.
